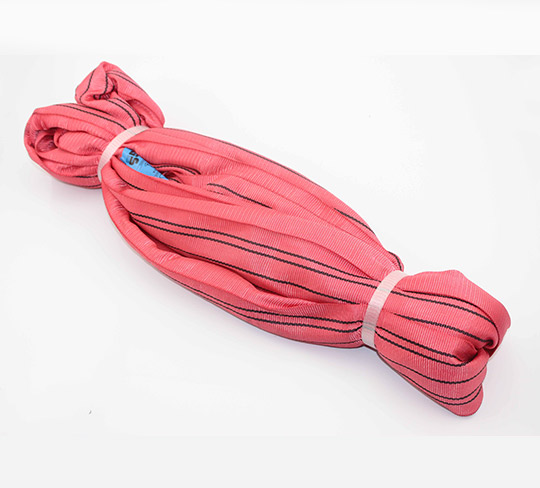

5T Red Round Sling
Color: Red
Working Load: 5000kg
Length: 1m-12m, as required
Safety Factor: 5:1, 6:1, 7:1, 8:1
Material: High tenacity 100% Polyester
Certificate:TUV-GS/CE
Standard: ISO4878, EN1492-2, ASME B30.9, AS 4497
Characteristic: PU impregnated ,WLL & Length printed,Low elongation
Package:Single packed in shrinking foil or plastic with Certificate of Conformity.
Endless round slings are the most basic and versatile type of round sling.They are made of load-bearing core and protective jacket,which provides a layer of protection over the core polyester loops,and the its abrasion will not reduce capacity.And this jacket is color coded by the capacity and also has black strips for better knowlage of which sling to be used in particular applications.The design of endless type is to extend its working life,because the point of contact can rotated with each use,and thus reduce continuously pressure over one fixed point
| According to EN1492-2:2000 (SF=7:1) |
|
|
WLL
|
|
Double Multi-set SWL (t)
|
|
|
|
0-7°
|
7-45°
|
45-60°
|
<45°
|
<45°
|
45-60°
|
45-60°
|
|
|
|
|
|
|
|
|
|
1
|
0.8
|
2
|
1.4
|
1
|
1.4
|
1.12
|
1
|
0.8
|
|
E7RS010
|
WLL 1T
|
1,000
|
800
|
2,000
|
1,400
|
1,000
|
2,800
|
1,120
|
1,000
|
800
|
|
E7RS020
|
WLL 2T
|
2,000
|
1,600
|
4,000
|
2,800
|
2,000
|
5,600
|
2,240
|
2,000
|
1,600
|
|
E7RS030
|
WLL 3T
|
3,000
|
2,400
|
6,000
|
4,200
|
3,000
|
8,400
|
3,360
|
3,000
|
2,400
|
|
E7RS040
|
WLL 4T
|
4,000
|
3,200
|
8,000
|
5,600
|
4,000
|
11,200
|
4,480
|
4,000
|
3,200
|
|
E7RS050
|
WLL 5T
|
5,000
|
4,000
|
10,000
|
7,000
|
5,000
|
14,000
|
5,600
|
5,000
|
4,000
|
|
E7RS060
|
WLL 6T
|
6,000
|
4,800
|
12,000
|
8,400
|
6,000
|
16,800
|
6,720
|
6,000
|
4,800
|
|
E7RS080
|
WLL 8T
|
8,000
|
6,400
|
16,000
|
11,200
|
8,000
|
22,400
|
8,960
|
8,000
|
6,400
|
|
E7RS100
|
WLL10T
|
10,000
|
8,000
|
20,000
|
14,000
|
10,000
|
28,000
|
11,200
|
10,000
|
8,000
|
|
E7RS120
|
WLL12T
|
12,000
|
9,600
|
24,000
|
16,800
|
12,000
|
33,600
|
13,440
|
12,000
|
9,600
|
|
|
|
